Cooker hob - Quadra Modular Induction Plate
Description
Details
Pairings
Alternatives
Description
The Modular Induction Plate requires a simple configuration, composed of Connection box and Touch Control Modular (see "Recommended pairings" at the bottom of the page).
Details
Code product
7366350
Coloring
Black
Edge/Installation Type
Bevelled Edge - for flush-mount or over-mount installation
Material
Ceramic glass
Supply
Single-phase: 230 V; 1P + N; Two-phase 400 V; 2P + N; 50.60 Hz

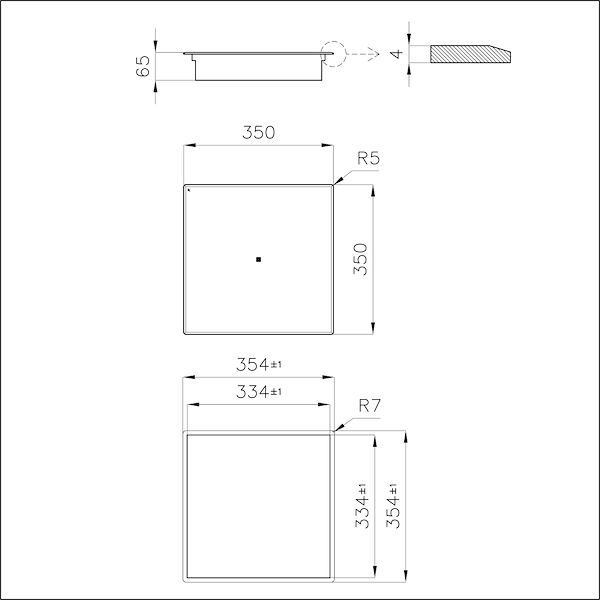

Dimensions
350x350 mm
Full description
Induction Plate 350 x 350 mm - for Quadra Modular System
Heating element
single zone
Total power
2.300 (3.000)* W
Power settings
9 power settings per zone + Powerboost
Safety
Safety equipment
Type
Induction Hob
Type of commands
Touch Control
Notes:
* Powerboost
Notes:
